FieldCast Power Station One
buyThe hybrid hub for Studio Converter

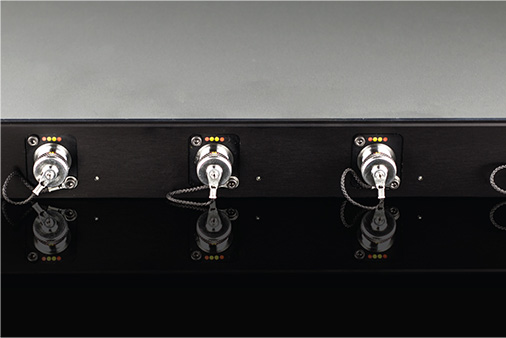

FieldCast Power Panel One is a 19″ 1RU panel box, on the frontside equipped with four FieldCast 2Core SM Hybrid Chassis Connectors to connect to up to four FieldCast Hybrid Main Cables.
The back is equipped with four LC Duplex connectors to patch to up to four LC SFPs in the ATEM Studio Converter. In addition FieldCast Power Panel One is provided with four XLR connectors, ideal for connecting to FieldCast Power Box for 24V power.
Mount it, plug it in and be ready to go fiber the sturdy way
FieldCast Power Panel One is developed to properly and sturdily patch FieldCast Hybrid Cables to ATEM Studio Converter, ATEM Talkback Converter 4K or any other device using LC single mode connectivity while getting current from FieldCast Power Box to power cameras or any other LC single mode equipment on long distance. FieldCast Power Panel One is a panel box, 1 rack unit in height, which can be implemented in a 19” rack nearby your Studio Converter and FieldCast Power Box. Four FieldCast 2Core SM Hybrid Chassis Connectors are mounted on the frontside of the FieldCast Power Panel One; so you can connect to up to four FieldCast Hybrid Main Cables coming out of cameras or other equipment . Built-in on the backside of the FieldCast Power Panel One are four LC Duplex and four XLR connections; with standard LC Duplex patch cables you can connect to the SFPs in ATEM Studio/Talkback 4K Converter; with standard XLR cables you can patch to FieldCast Power Box and feed each FieldCast Hybrid Main Cable with 24V power. Patch cables are not by default included in FieldCast Power Panel One.
Features
Robust 1RU rack mount panel box, steel with black finish, to be mounted in between Blackmagic Design Studio and FieldCast Power Box.
Four FieldCast™ 2Core SM Hybrid Chassis Connectors on the frontside: to connect easily four FieldCast 2Core SM Hybrid Main Cables.
Four LC Duplex connections on the backside: allows seamless connection to the SFPs of ATEM Studio Converter with standard patch cables.
Four built-in XLR connections on the backside: with standard XLR patch cables you can connect to FieldCast Power Box and feed each FieldCast Hybrid Main Cable with 24V power.
Does not change anything to the functionality of Studio or Talkback Converter, but simply is a safe and sound bridge from the vulnerable LC connections to the robust FieldCast connections: now it’s safe and simple to go fiber and have power over fiber as well!
Specifications
| Material | Aluminum enclosure design |
|---|---|
| Fiber Connector | Four color-coded 2Core FieldCast Hybrid Chassis Connectors SM (single mode) on the front side, and four LC Duplex connections with dust caps on the back side of the panel |
| Internal Fiber Patching | Custom FieldCast ultra short bend-insensitive patching cable with standard PC polished LC Duplex connections to Senko LC Duplex connection |
| External Fiber Patching | Optional 2Core SM Hybrid 100m on drum for the front side, and optional 30 cm. black LC Duplex patch cable for the back side |
| Fiber Type | Single mode 9/125 |
| Horizontal Punch Spacing | 105 mm |
| Cutouts | Four D-size (24 mm.) cutouts |
| Weight | 2.69 kg |
| Dimension | 1RU panel size, 482.60 (W) x 44.45 (H) x 150 mm (D) |
| Power | 2x 36V 350W power supplies of which one is redundant |
