FieldCast Panel One
buyThe fiber hub for multi-channel converter devices

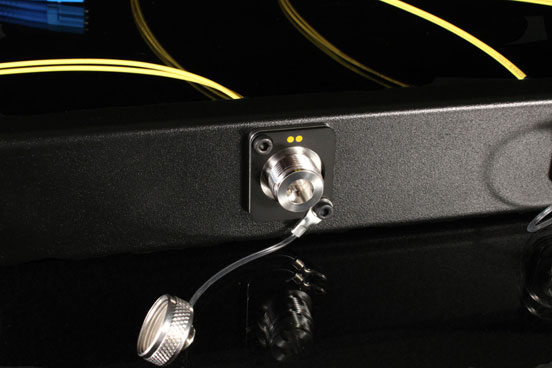

FieldCast Panel is a 19″ 1RU panel, equipped with four FieldCast 2Core SM Chassis Connectors, ideal for using FieldCast cable in conjunction with multi-channel converter devices, such as Blackmagic ATEM Studio Converter.

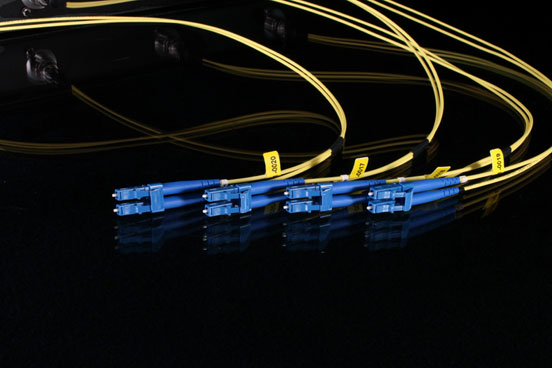

All four Chassis Connectors have a 50 cm outlet at the back, with an LC Duplex connector at the end, matching the four LC SFPs at the back of the converter unit. You only have to mount the panel and plug it in to be able to go FieldCast!
Mount it, plug it in and be ready to go fiber the proper way
FieldCast Panel is just to make it easy for you to start using FieldCast. We took four standard FieldCast 2Core SM Chassis Connectors and a nice black 19inch panel, and simply screwed the parts together, as an example of how to use the Chassis Connectors in environments where 19″ racks and flight cases are implemented. Of course you can use your own panels, put six or eight connectors in a row or mix and match with other D-size connectors, and get the combination that perfectly
suits your needs. Still, the panel is popular
and sells better than we expected, and we decided
to keep it in our portfolio and treat it as one of our key
FieldCast products! FieldCast Panel, with its 50 cm long
outlets, can be mounted anywhere near Studio Converter or
Talkback Converter 4K, or for that matter any other
device using LC single mode connectivity.
And if the outlets are too short you can
use low cost LC adapter and patch cable
to go any length.
Features
Robust 19″ rack mount panel, steel with black finish, 1RU in height, to be mounted directly above or beneath Blackmagic Design Studio Converter™.
Features four FieldCast™ 2Core SM Chassis Connectors: now you can easily connect four FieldCast 2Core SM Main Cables straight to Blackmagic Design ATEM Studio Converter, and without any risk or any hassle!
FieldCast 2Core Chassis Connectors come with 50 cm. integrated bend insensitive LC Duplex patch cables that connect seamlessly to the SFPs Studio Converter.
FieldCast color coding on all four connectors for easy identification.
Does not change anything to the functionality of Studio Converter, but simply is a safe and sound bridge from the vulnerable LC connections to the robust FieldCast connections: now it’s safe and simple to go fiber!
Specifications
| Material | 1.8mm steel panel with rounded edges and black paint finish |
|---|---|
| Fiber Connector | Four color-coded FieldCast 2Core SM Chassis Connector with D-size flange on one side, and four LC Duplex connectors with internal dust caps on the other side of the panel. |
| Fiber Type | Single mode 9/125 |
| Cable Length | 50 cm. bend-insensitive patch cable outlets with LC Duplex connectors |
| Horizontal Punch Spacing | 105 mm |
| Cutouts | Four D-size (24 mm.) cutouts |
| Weight | 620 grams |
| Dimension | Standard 1RU panel size, 482.60 (W) x 44.45 (H) x 25 mm (D) |
| Manual | Online manual |
