FieldCast Adapter One
buyGo into the field with Camera Converter
With Adapter One, you can connect a FieldCast 2Core SM main cable straight to Blackmagic Design’s famous ATEM Camera Converter, fast and easy.
Adapter One completely and effectively protects the vulnerable fiber optic LC connections to the SFP of Camera Converter. Now you can use your Camera Converter in any environment, and without worries!

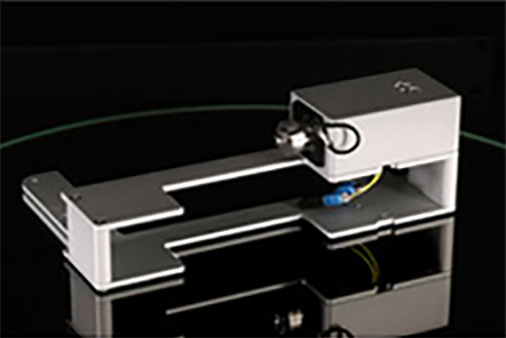

Adapter One has the smallest form factor possible, and the all-aluminum design makes it light as a feather
Robust fiber optic connectivity made easy
Get the max out of your Blackmagic ATEM Camera Converter by using the FieldCast fiber optic system. With FieldCast Adapter One, you can tap into the world of easy-to-use fiber optic connectivity and cover any distance between your OB Van and your live camera in the most professional way —perfect for professionals who demand reliability without compromise.
There are three versions of Adapter One, all designed to connect the delicate LC Duplex fiber optic port on your Blackmagic Camera Converter to the robust, field-ready fiber optic cable from FieldCast.
- Adapter One is the name of the standard version and interfaces to the FieldCast 2Core SM main cable;
- Adapter One Plus is the same as Adapter One but adds a 4-pin XLR connector, allowing for robust and safe connection to an external battery or power supply;
- Adapter One Hybrid interfaces to the FieldCast 2Core SM Hybrid main cable, allowing you to power the ATEM Camera Converter, charges its battery and power the camera.
Features
The adapter features a FieldCast 2Core Chassis Connector, so you can connect the FieldCast 2Core SM (single mode) Main Cable to it, fast and easy.

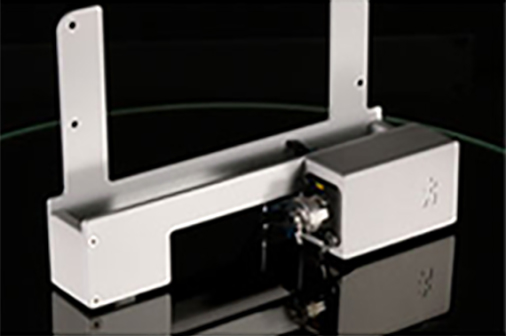

The design of the adapter is such that all functionality of Camera Converter is unchanged. The LC Duplex I/O connection is neatly covered by the milled out aluminum protection block, but all other connectors of the unit are accessible as before, and you can connect your camera and all other gear as you did before.
It’s easy to connect FieldCast Adapter One to Camera Converter. Just remove the four screws at the back of the converter, put Adapter One in place and screw it all together again, using the four screws that are part of the package.
The resulting assembly of converter and adapter feels and behaves as one complete unit, and even the belt clip at the back, with its inserts for connecting to pods, rigs or arms, can be used like before, as if the adapter was not there at all!
With Fieldcast Adapter One your ATEM Camera Converter has become sturdy all the way.

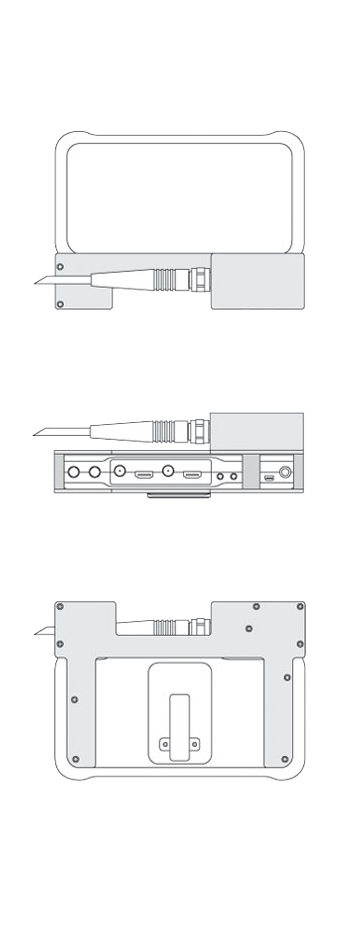

Click here for a diagram of Adapter One showing its basic function.
Specifications
| Material | Rugged milled out aluminum case, glass blasted, and anodized |
|---|---|
| Fiber Connector | Color-coded FieldCast 2Core SM Chassis Connector with D-size flange |
| Internal Fiber Patching | Custom FieldCast short bend-insensitive patching cable with standard PC polished LC Duplex connections to SFP |
| Fiber Type | Single mode 9/125 |
| D-size | Spare D-size cutout with blind plate, for updating to Adapter One Plus |
| Screws | Countersunk M3 20mm. mounting screws for connecting to Camera Converter |
| Manual | Instruction manual and hex key for removing Camera Converter screws are included |
| Weight | 350 grams |
| Dimension | 200 (L) x 133 (B) x 62 (H) mm. |
